Truck Class: Class 8 (Heavy Duty)
Notes: Fits 2007-2017 Freightliner Coronado (CC chassis 2007-2010, 122SD chassis 2010-2017) and 2013-2017 Western Star 4700. Compatible with Caterpillar C15, Cummins ISX/ISX15, Detroit Diesel Series 60, DD13, DD15, DD16, and Mercedes-Benz MBE 4000 Engines depending on year. PTR (Plastic Tank Aluminum) Radiator with Oil Cooler, outlet on RIGHT. OEM frame must be reused unless specially mentioned. MUST VERIFY FITMENT BEFORE ORDERING.

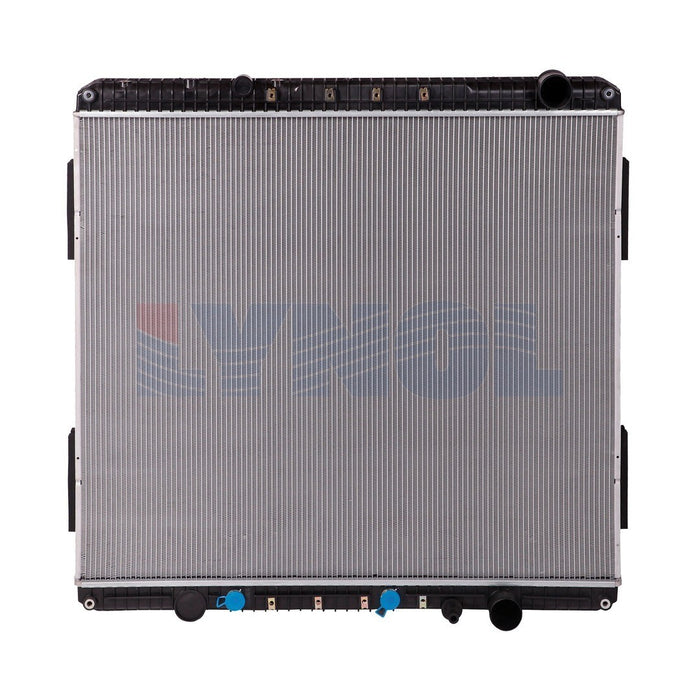

NOTE: LR2200-028 — Core Height 35-3/4" | Core Width 41-5/8" | Core Thickness 2-3/16" | Inlet 2-1/2" Upper Right | Outlet 2-1/2" Lower Right (same side) | Oil Cooler: Yes (5 plate, 12" centers - TOC) | Without frame. For Coronado chassis variants (2010-2015), also available: LR2200-073 — Coronado W125 with TALLER core 45-3/5" × 41-2/3" | crossed hoses (Lower LEFT outlet). LR2200-078 — Coronado W125 with TALLER core 45-3/5" × 41-2/3" | same-side hoses (Lower RIGHT outlet). LR2200-063 — Coronado 2013-2019 (different chassis) Core 42-1/8" × 41-2/3". Smaller-core options for similar fitment: LR2200-062 — Coronado/114SD/4700 2010-2019 with smaller Core Width 35-3/4" | without frame. LR2200-074 — same as LR2200-062 but with frame. Verify your OEM part number to choose the correct radiator. MUST VERIFY FITMENT BEFORE ORDERING.
NOTE: Core Height 35-3/4" | Outlet on Right (same side as inlet)
Product Attributes:
- Core Height: 35-3/4"
- Core Width: 41-5/8"
- Core Thickness: 2-3/16"
- Inlet Diameter: 2-1/2" (Upper Right)
- Outlet: 2-1/2" Lower Right (same side)
- Oil Cooler: Yes (5 plate, 12" centers TOC)
- Weight: 67 lbs
- Fuel Type: Diesel
- Engine Brand: Caterpillar / Cummins / Detroit Diesel / Mercedes-Benz
Cross Reference Numbers:
2200028 2200-028 800089 800089ST 800089PT 8000-89 8000-89-AP 800069AP 800089STD 238689 SC238689 SCSI238689 TR8689 437316P 0437316P HDC010749 HDC010749PA HDC010749PAF HDC010856 HDC010856PA HDC010856PAF HDC010856PAFB FRE-93 FRE93 FRE93F LT1309 LT9185 LT9227 LT9230 LT9409 SRM1309 613RA089 FLA002263 HD1309 0526617020 0526622000 0526622002 0526622004 0527750000 0527750002 0529618000 0529618002 0529628000 A0525303000 A0525303002 A0525303004 A0525303006 A0526617000 A0526617002 A0526617004 A0526617006 A0526617008 A0526617010 A0526617012 A0526617014 A0526617016 A0526617018 A0526617022 A0529628000 3A0580820002 3S0580820002 3E0120440002 MOD3S0580820002 2001-1753 2401047 42-10330
