| Box Length (in): 32 1/4 |
| Box Width (in): 24 1/2 |
| Box Height (in): 7 1/16 |
| Box Weight (lbs): 21 |

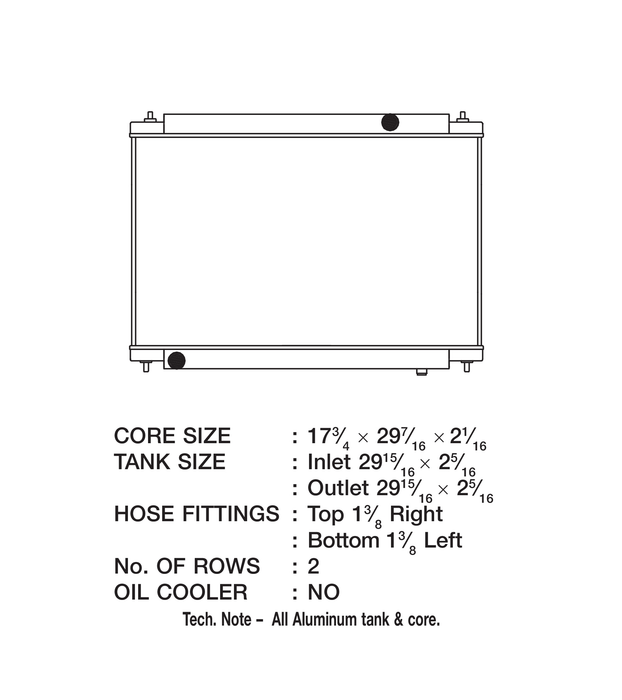

| Core Length: 17 11/16 IN |
| Core Width: 29 7/16 IN |
| Core Thickness: 2 1/16 IN |
| Inlet Length (in): 29 15/16 |
| Inlet Width (in): 2 5/16 |
| Outlet Length (in): 29 15/16 |
| Outlet Width (in): 2 5/16 |
| Inlet Diameter: 1 3/8 Right IN |
| Outlet Diameter: 1 3/8 Left IN |
| No. Of Rows: 2 |
| Core Material: Aluminum |
| Tank Material: Aluminum |
| Down Flow Or Cross Flow Type: Down Flow |
| Radiator Cap Supplied: No |
| Hazardous Material: No |
| Tech Note: All Aluminum tanks & core. |
| CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road |
| 100% OE style & OE specs for Dop-in fit |
| Pre-installed & tested drain plug |
| 100% Hydrostatic tested at 1.5 times operating pressure |
