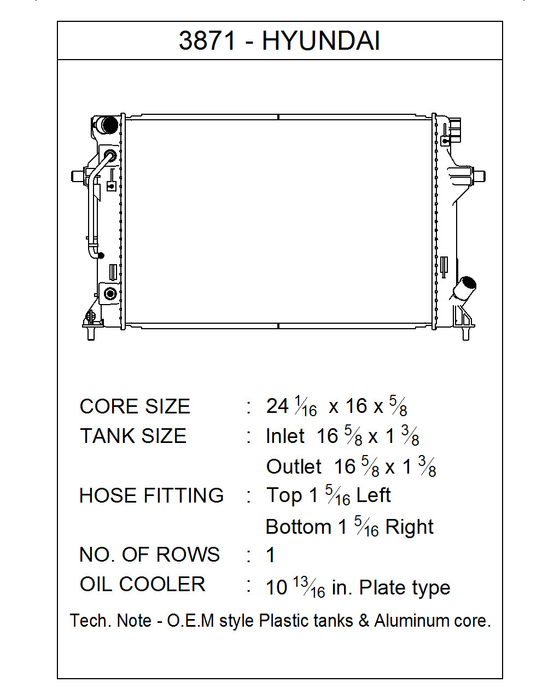

| Outlet Diameter: 1 5/16 Right IN |
| Box Height (in): 6 5/8 |
| Box Length (in): 33 5/8 |
| Box Weight (lbs): 9 |
| Box Width (in): 20 3/16 |
| Core Length: 24 1/16 IN |
| Core Material: Aluminum |
| Core Thickness: 5/8 IN |
| Core Width: 16 IN |
| Down Flow Or Cross Flow Type: Cross Flow |
| Hazardous Material: No |
| Inlet Length (in): 16 5/8 |
| Inlet Width (in): 1 3/8 |
| No. Of Rows: 1 |
| Oil Cooler (in): 10 13/16 (High-Efficiency Plate Type) |
| Outlet Length (in): 16 5/8 |
| Outlet Width (in): 1 3/8 |
| Radiator Cap Supplied: No |
| Tank Material: Plastic |
| Inlet Diameter: 1 5/16 Left IN |
| Tech Note: O.E.M. style Plastic tank & Aluminum core. Upgraded Heavy Duty Core. 41% Thicker 15.5mm vs OEM 11mm |
