Fits the following 2014 Chrysler 300 applications:
- Chrysler 300 3.6L V6

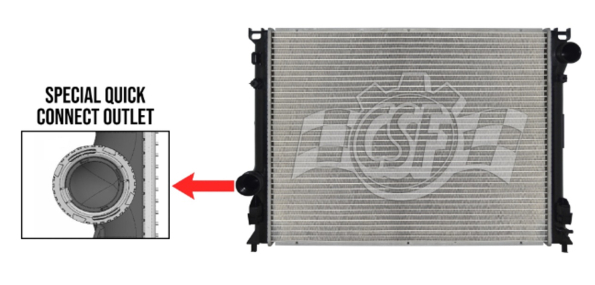

OE-style direct-fit Heavy Duty Radiator for the 3.6L V6 engine with quick-connect outlet.
NOTE: OE-style direct-fit replacement. Indonesia Built. O.E.M. style Plastic tank & Aluminum core with quick-connect outlet pipe. O-Ring for Quick Connect Outlet included. Upgraded Heavy Duty Core. 2 Row core to OEM 1 Row core. Dual Fan Assembly with Heavy Duty Cooling and Special Quick-Connect Outlet. O-Ring for Quick Connect Outlet included.
| Product Attributes |
|---|
| Bottom Hose Fitting (In): 1 7/8 Left |
| Box Height (In): 7 1/16 |
| Box Length (In): 31 1/4 |
| Box Weight (lbs): 13 |
| Box Width (In): 23 1/8 |
| Core Length (In): 24 1/8 |
| Core Material: Aluminum |
| Core Thickness (In): 1 5/8 |
| Core Width (In): 18 11/16 |
| Cross-flow/ Down-flow: Cross Flow |
| Hazardous Material: No |
| Inlet Length (In): 19 1/8 |
| Inlet Width (In): 2 1/4 |
| No. of Rows: 1 |
| Oil Cooler (In): No |
| Outlet Length (In): 19 1/8 |
| Outlet Width (In): 2 1/4 |
| Radiator Cap Supplied: No |
| Tank Material: Plastic |
| Top Hose Fitting (In): 1 3/4 Right |
| Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect outlet pipe. O-Ring for Quick Connect Outlet included. Upgraded Heavy Duty Core. 2 Row core to OEM 1 Row core |
About CSF Radiators:
- CSF factories are ISO/TS-16949 certified
- OEM specified Plastic Tank — Aluminum Core Construction
- 100% leak tested before leaving factory at 150% of operating pressure
- Drop-in Fit
- High Performance Transmission Cooler with special Built-in Turbulator, when applicable
